Doug Thorley Headers  |  SKU: THY-324Y-C

THY-324Y-C / 1967-1972 GM C10 Pickup Truck LS Series Motor Swap 4.8L-6.2L (1-5/8" Primary Tubes)

$1,095.00
Shipping calculated at checkout.


Care information

Display general product information or specific product information using metafields.

Delivery and Shipping

Description

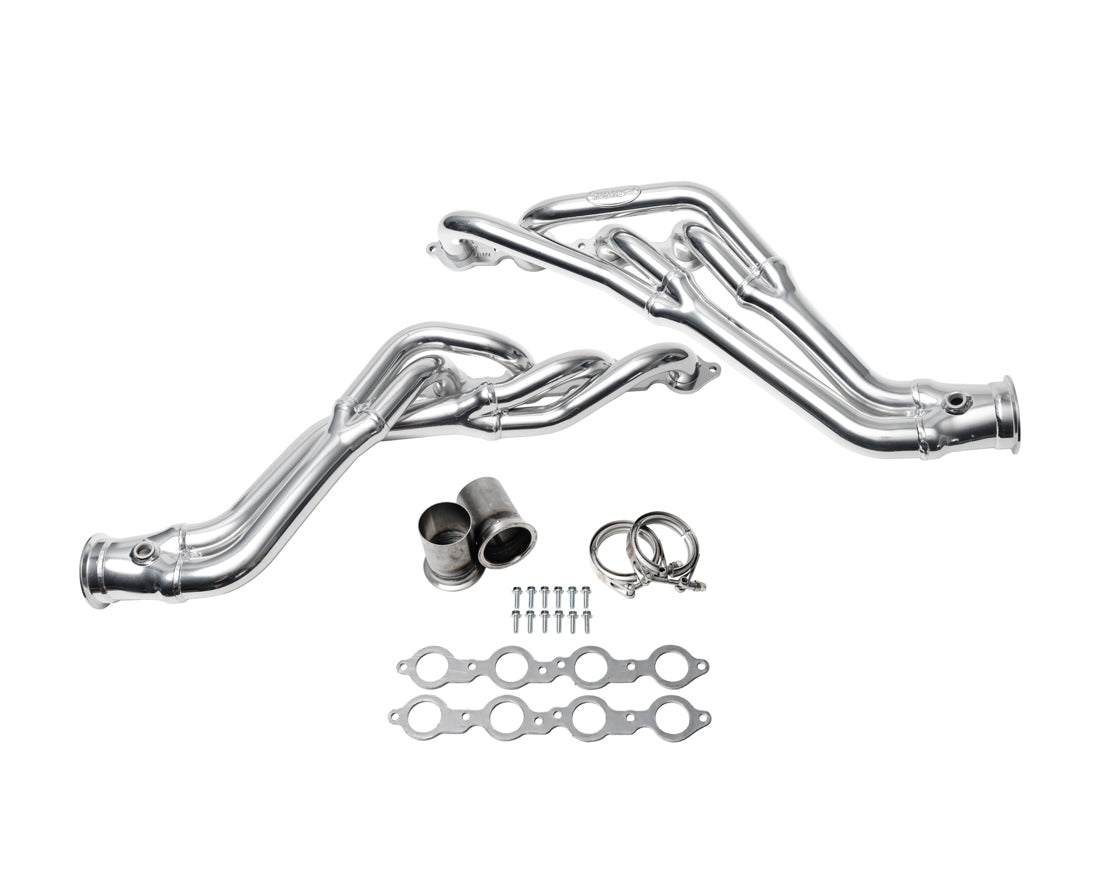

Long Tube Tri-Y Headers with Adapters
1967-72 Chevrolet C10 Truck / Suburban / K5 Blazer / GMC Jimmy
4.8L-6.2L LS Motor Swap

Application Specifics:
 Manual transmission requires cable or hydraulic clutch linkage

Header Style: Long Tube 4:2:1 Tri-Y Headers
Material: Steel
Finish: Silver Ceramic Coated
Weld Up: Yes, adapters must be welded to the exhaust system
Primary Tube Diameter: 1-5/8"
Primary Tube Gauge: 14 Gauge
Collector Attachment: V-Band
Collector Diameter: 3"
Tuned: No
Flange Thickness: 3/8"

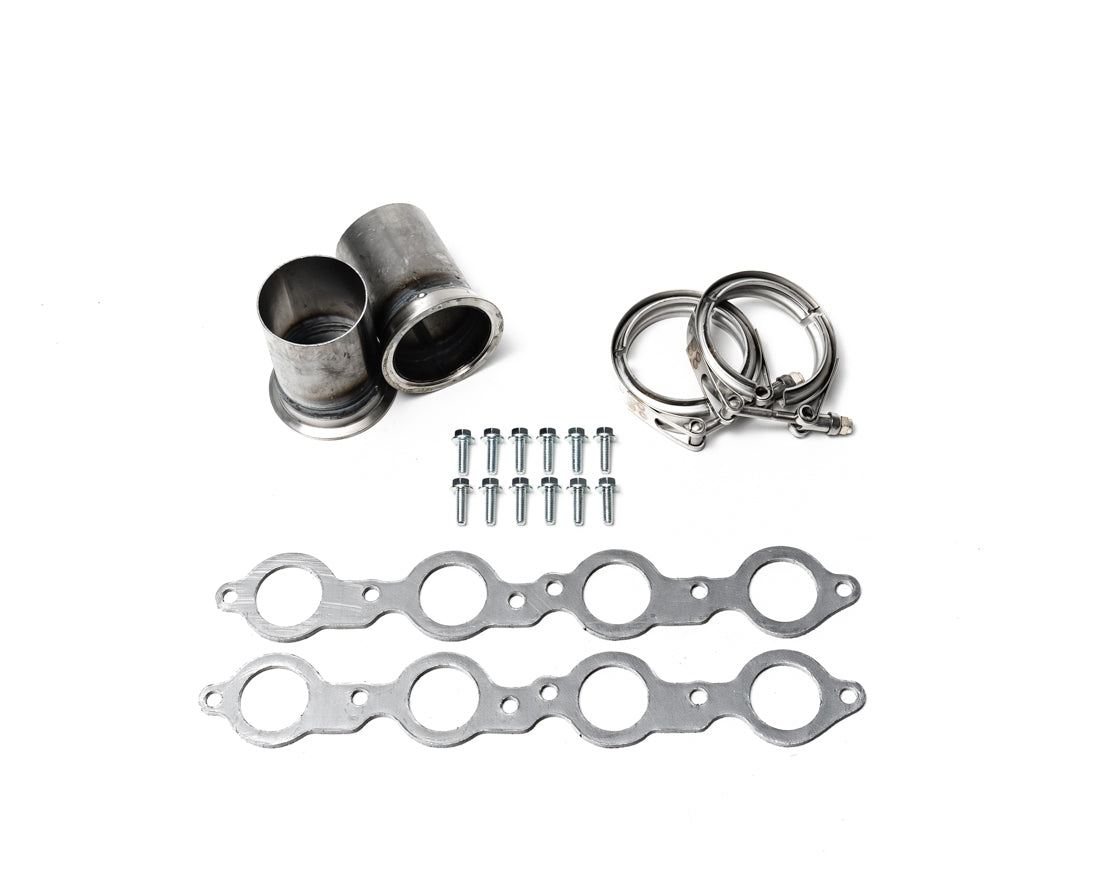

Bolts and/or Studs Included: Yes
Gaskets Included: Yes
Adapters/Reducers Included: Yes
Y-Pipe (Crossover) Included: No
Motor Mounts Included: No, contact us if you need recommendations
Quantity: Sold as a Pair
CARB E.O. #: N/A
Warranty: Limited Lifetime to original purchaser

Notes: What better way to enhance your vehicle than a beautiful set of long tube tri-y headers to ensure you get the most power out of your LS engine! Backed by over 50 years of knowledge and experience, our headers are designed to outflow stock exhaust manifolds by leaps and bounds. Tri-Y (or 4 into 2 into 1) style headers by design will increase the power of your motor across the widest RPM band possible. That is the design's beauty, which is why they are the best street header available. To make these headers last, we built them using industry-leading 14-gauge steel tubing with 3/8" thick flanges. Topping all of that off, our headers come beautifully ceramic coated to greatly reduce under-hood temperatures and protect the headers from the environment. All are 100% American made, and backed by our lifetime warranty. Install these long tube headers today and feel your vehicle's true power potential!

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov

ALUMINUM: Most of the aluminum alloys used today contain some level of lead, usually less than .1%. Lead is known to the state of California to cause cancer and reproductive harm. Most aluminum alloys are physiologically inert in their solid form, and the lead is contained within, however user-generated dust and/or fumes may pose a hazard if inhaled or ingested. Heating beyond a certain temperature may also provide avenues for exposure.

STEEL (steel bolts): Steel is an iron alloy with several metals including Nickel and Chromium. Both Nickel and Chromium are known to the State of California to cause cancer and reproductive harm, respectfully. This warning applies to stainless steel as well.
