Dirty Dingo - 73-87 2WD Chevrolet GMC Truck Blazer Suburban LS Engine Mounts

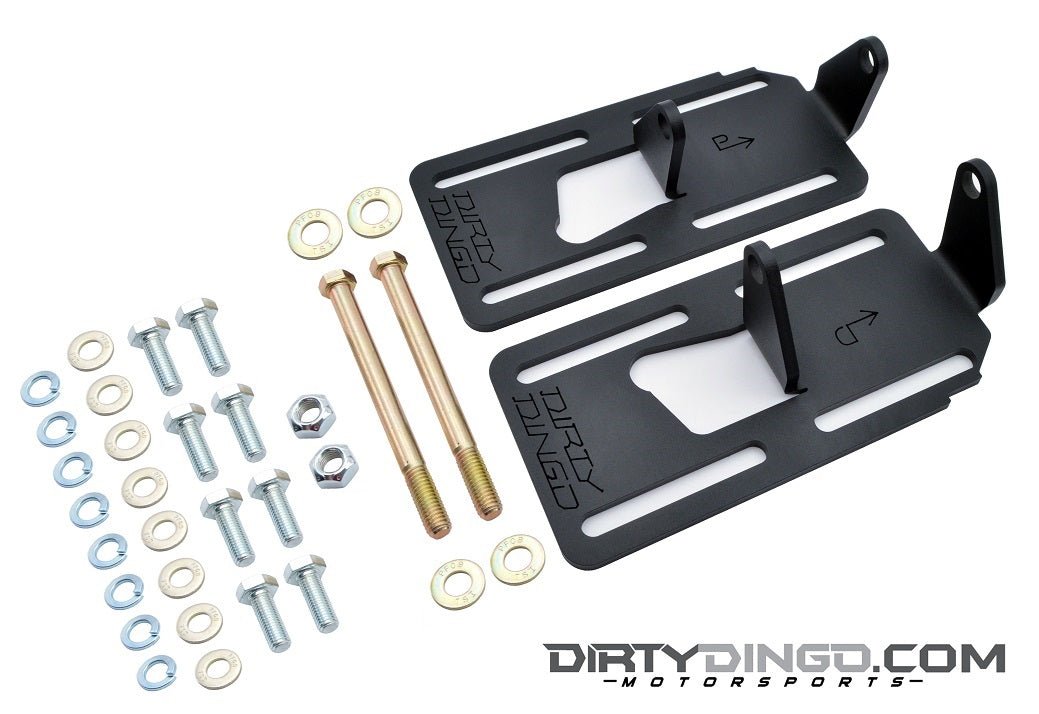

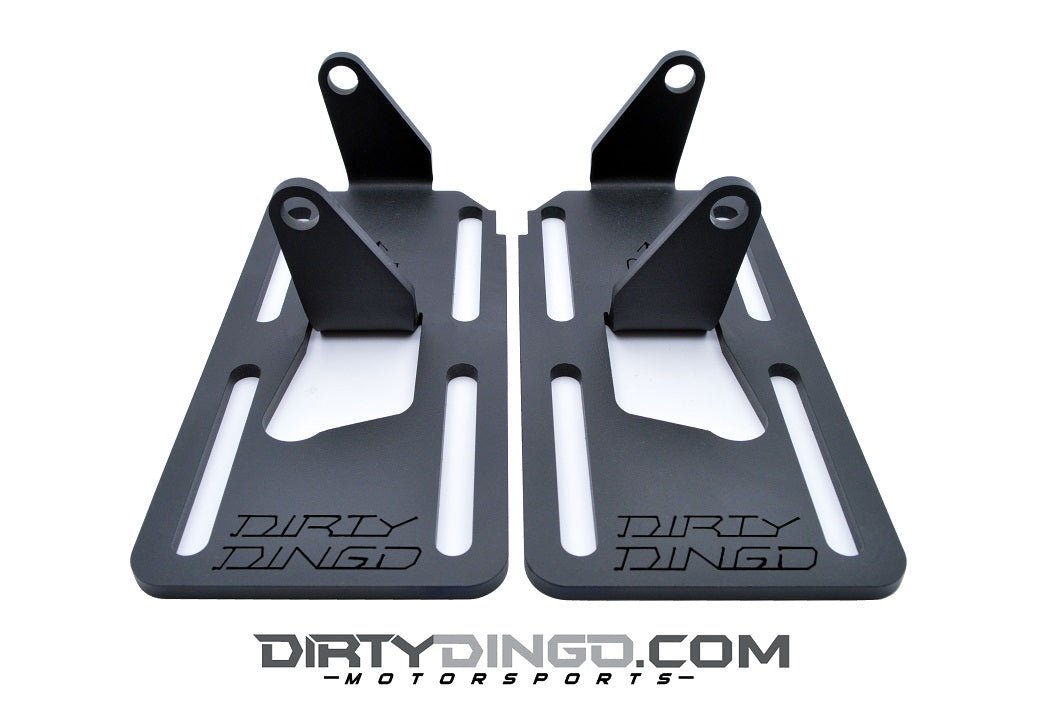

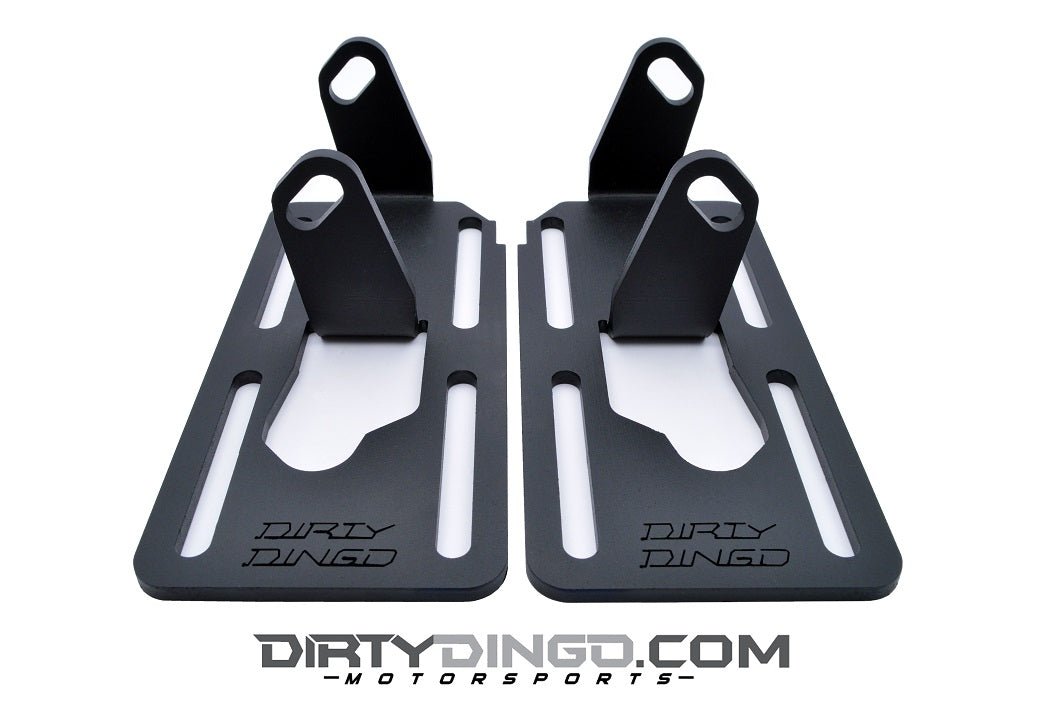

The Dirty Dingo 1973-87 2WD Chevy-GMC Truck Mounts are precision CNC laser-cut from .250 thick 1050 High Carbon cold-rolled steel. Specifically designed for the Gen III/IV LS series engine installation into older Chevrolet/GM trucks, these LS adjustable conversion mounts are slotted for optimal adjustment in the engine compartment. These mounts will allow you to move the engine from the original bell housing position up to 2 1/2” forward and 1/2” rearward and ensure secure engine placement when torqued in place, even in high horsepower applications. Each mount is manufactured using precision CNC press brake with a custom large radius die to minimize stress on bends. Conversion mounts are designed to integrate with the factory rubber clamshell-style mounts on the original frame. The design accommodates a range of standard or automatic transmissions, including Powerglide, TH350, TH400, TH700R4, 4L60E, 4L65E, 4L70 and 4L80. Each kit includes high quality grade-8 zinc-coated hardware, including new cross bolts.

* Raw steel not painted.

* Will not fit DART aftermarket blocks.

* Sold in pairs, left and right. "D" is the Drivers side, "P" is the Passenger side. Arrows point forward.

* These mounts will clear LS Truck low mount A/C but will not allow the engine to slide back, they mount against the a/c compressor bracket pulling the engine 2 1/2" forward from the original bell housing position. Will not fit with Corvette or Camaro-GTO low mount A/C.

* If your application will allow a 1998-02 Camaro low mount alternator mount, the amount of adjustment will be limited.

* Clears LS truck oil pans, no special oil pan is required to clear factory steering or frame. For lowered trucks we recommend using a 98-02 Camaro oil pan or 302-2.
