Dirty Dingo Motorsports  |  SKU: DD-4X4-K-TRANS

Dirty Dingo - 1963-1987 K5 K10 K20 4X4 Transmission Cross Member

$299.99
Shipping calculated at checkout.
Finish
Transmission Mount


Care information

Display general product information or specific product information using metafields.

Delivery and Shipping

Description

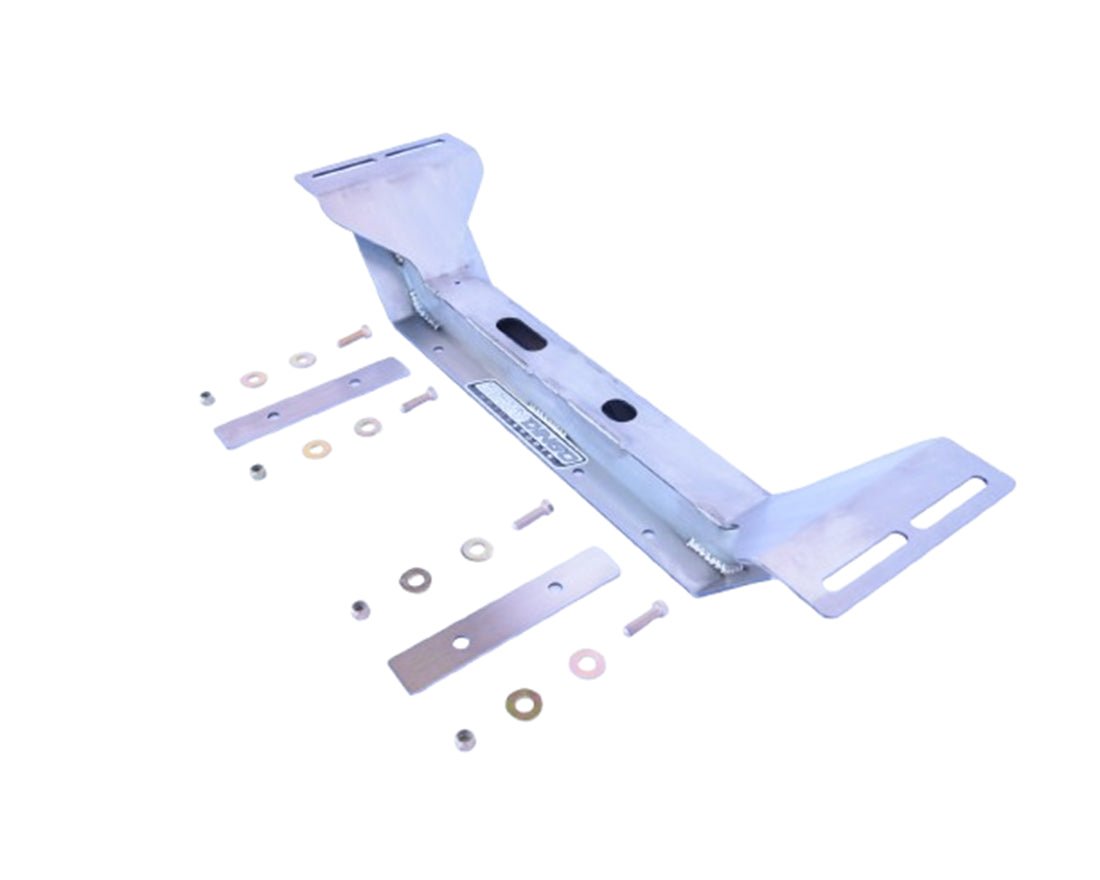

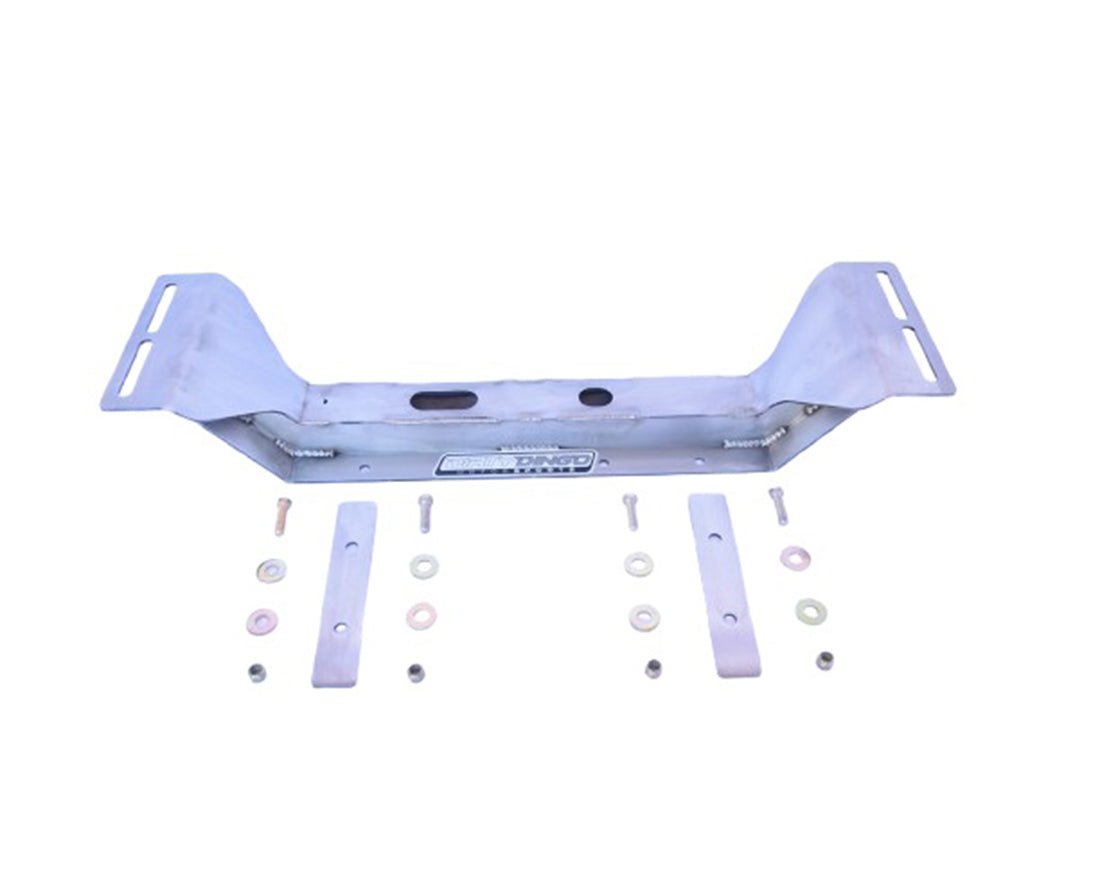

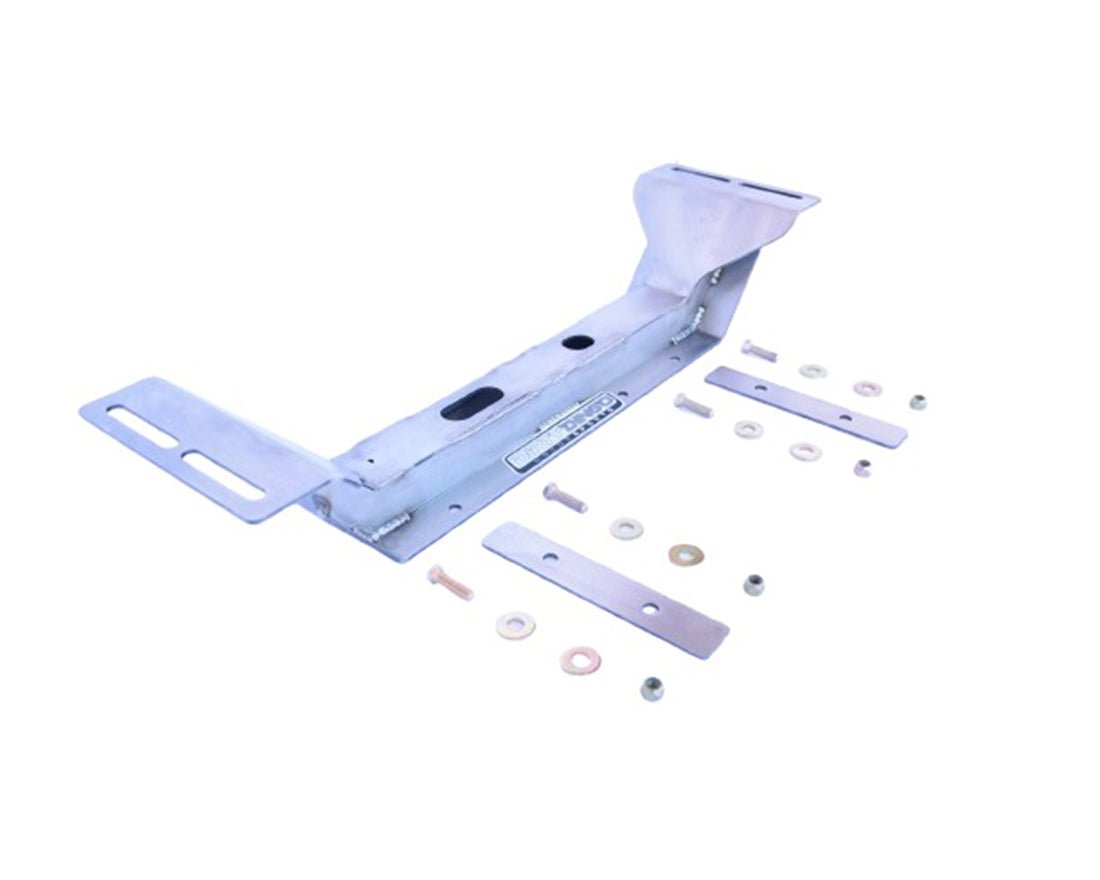

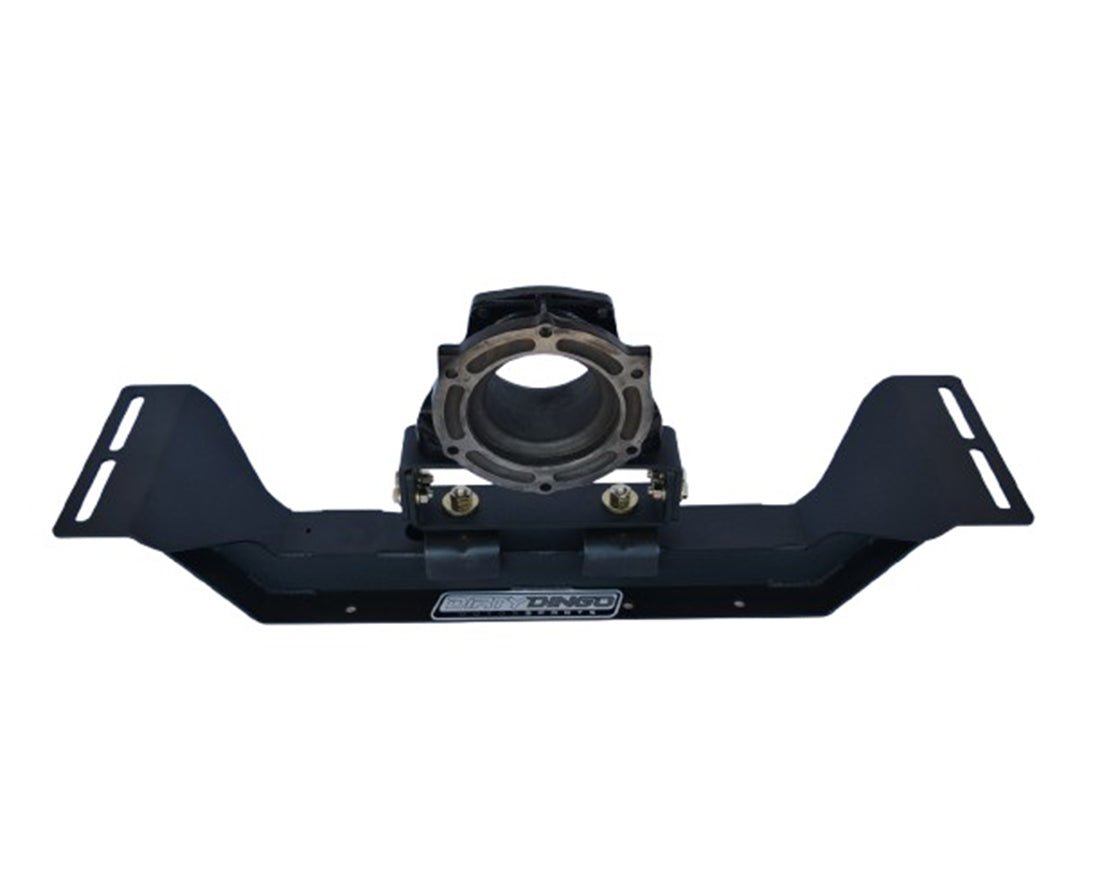

Dirty Dingo 4X4 transmission cross member bolts into 1963-87 Chevy K5, K10, K20 / GMC Trucks / SUV's and 88-91 Blazer's and Suburban's. Laser cut from 3/16 high carbon grade 70 steel plate steel and CNC folded. Designed also to replace W cross members and clear cardan joints. It has a completely boxed-in heavy-duty design that weighs 28 lbs without hardware. Welded and cooled in a fixture for precision fitment. Mounting holes are slotted for 3" of adjustment for forward and aft location. Designed to be used with 1967-1984 style transmission mounts. Includes 1/4 thick steel top frame support plate and 7/16" grade 8 hardware to bolt the cross member to your factory frame and 1/2" bolts to install the transmission mounts to the cross member. Shown with optional late model 4L60, 4L65, 4L70, 4L80, 6L80, 6L90- 8L90- 10L90 Silverado and 4 and 5-speed transmission mount adapter DD-LMTA.

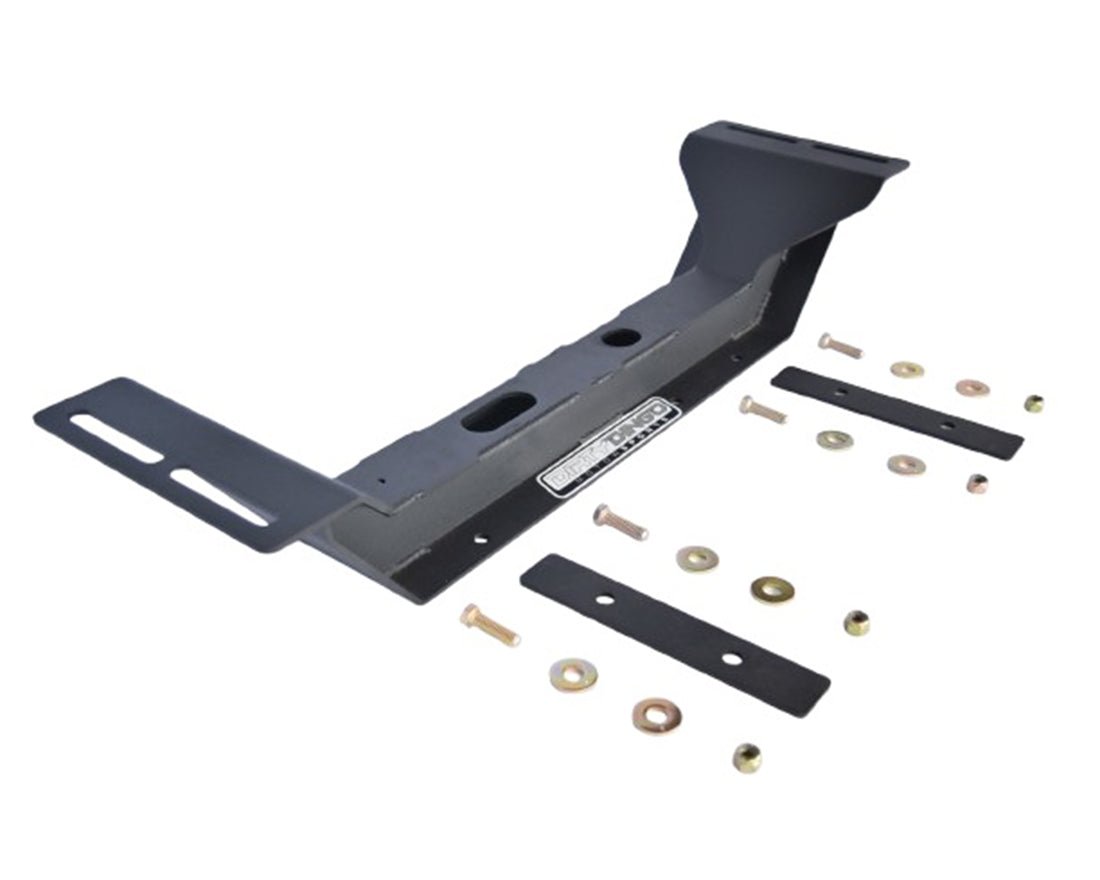

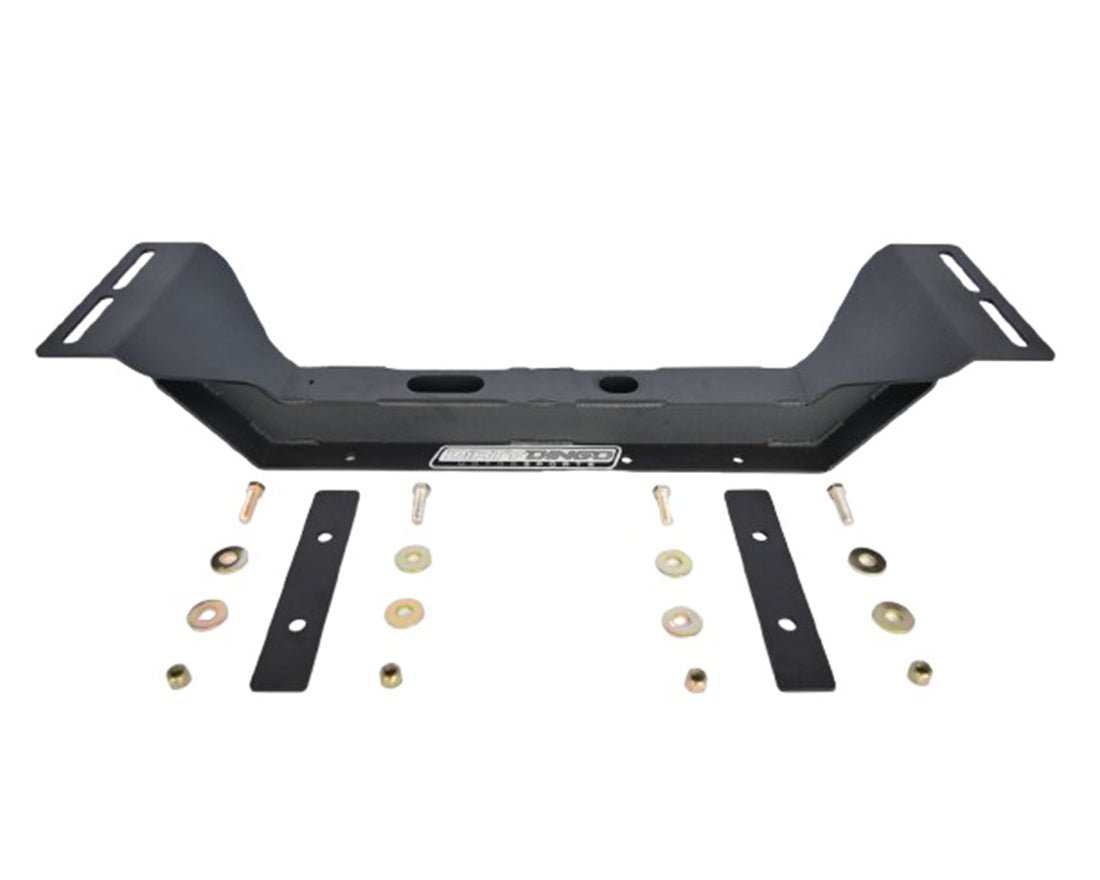

  • Plain raw steel (Black Texture Powder Coat Available).

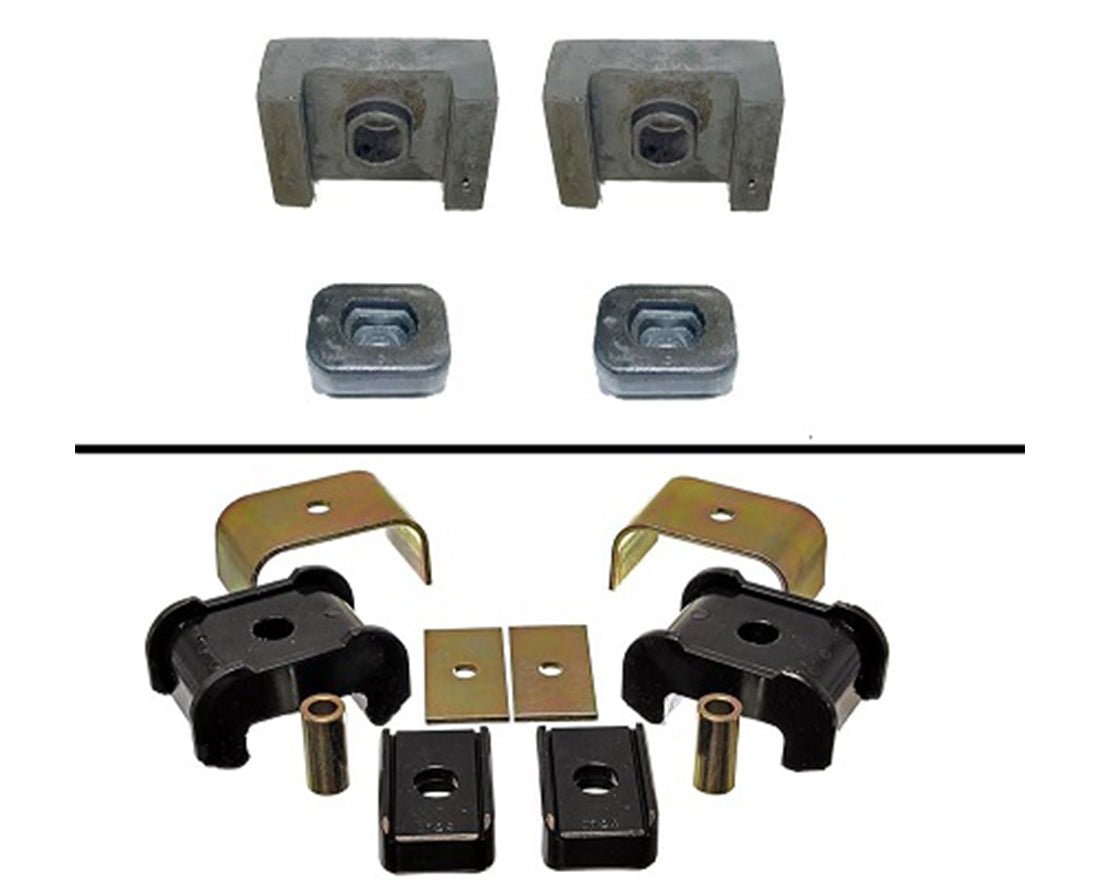

  • Optional rubber transmission mounts.
  • Optional Urethane transmission mounts.
  • Optional Late Model Adjustable Transmission Adapter  DD-LMTA.

Fitment
