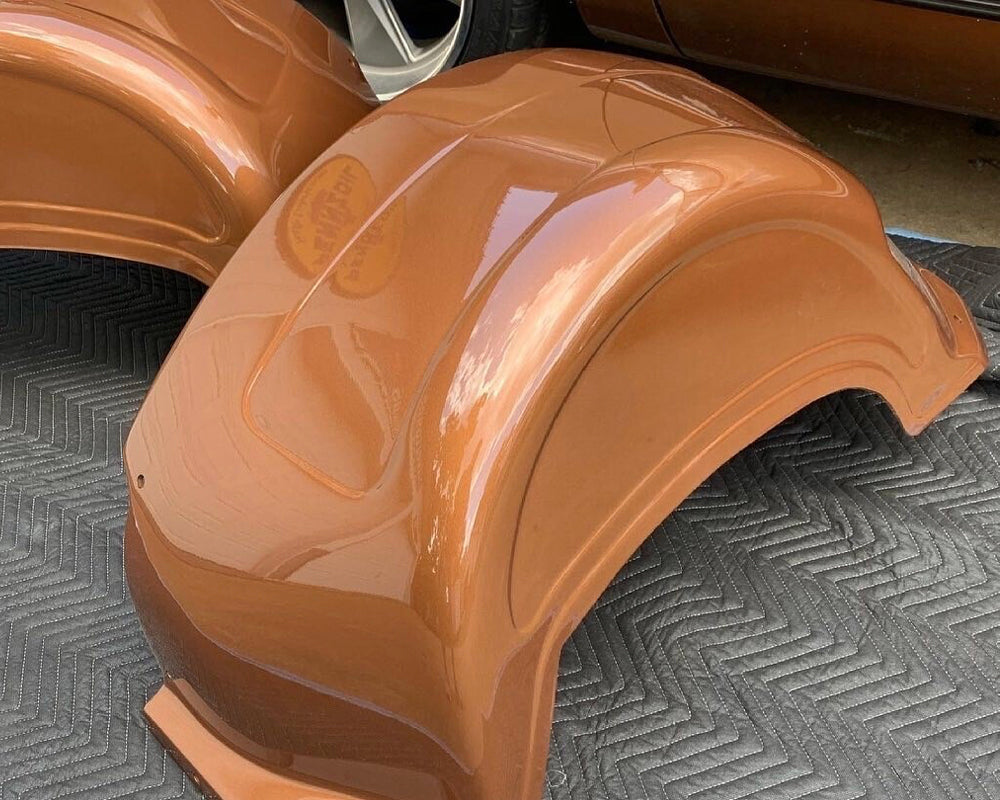

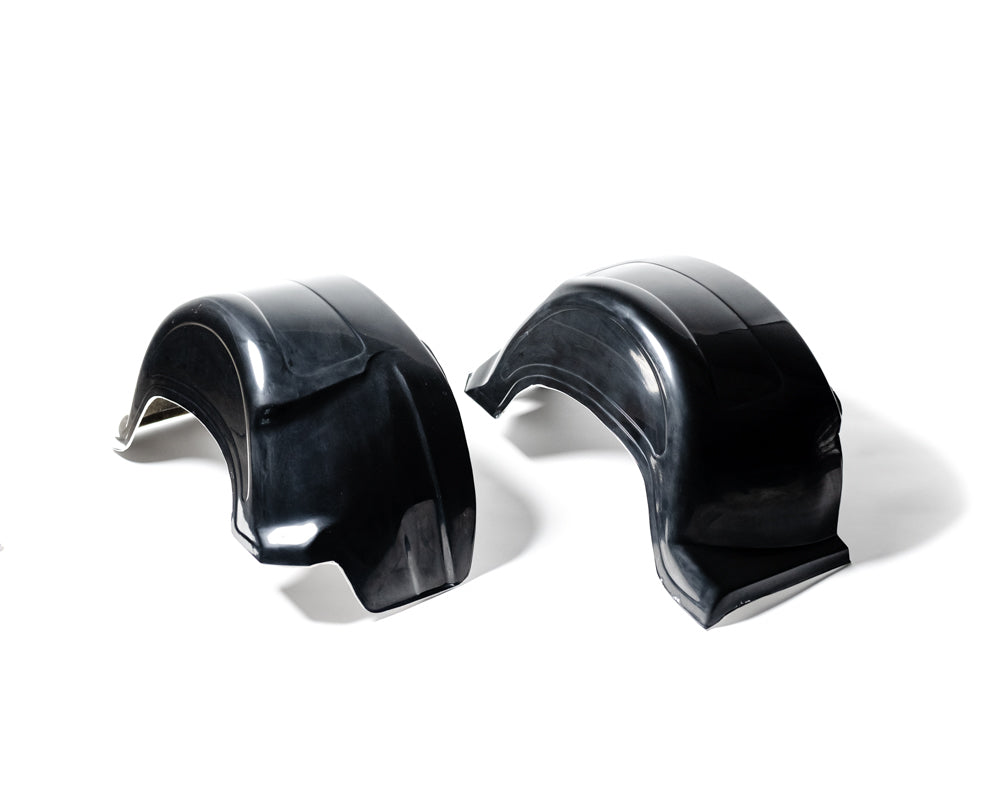

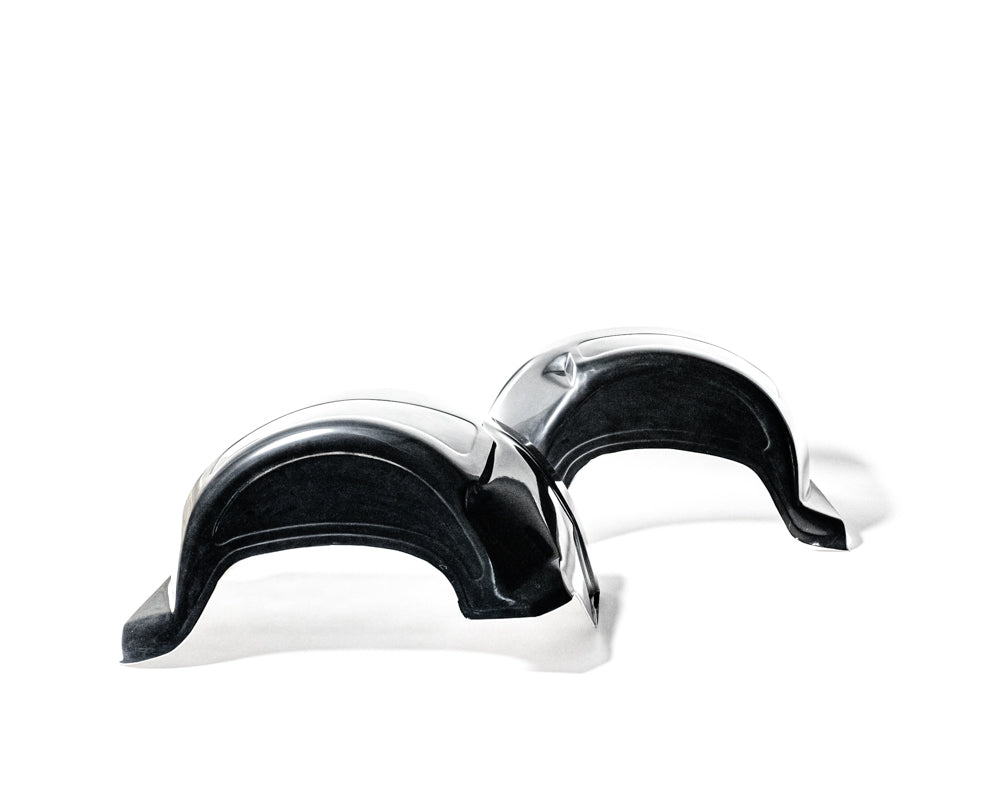

1988-98 Chevy OBS Faux Metal Mild Tubz

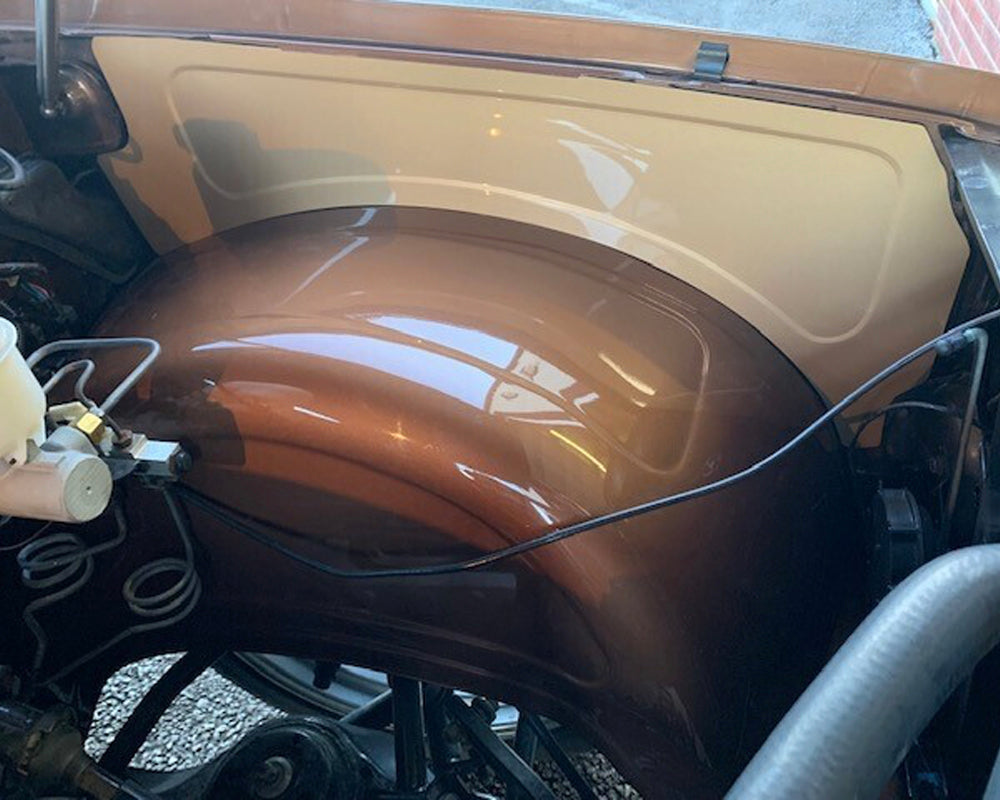

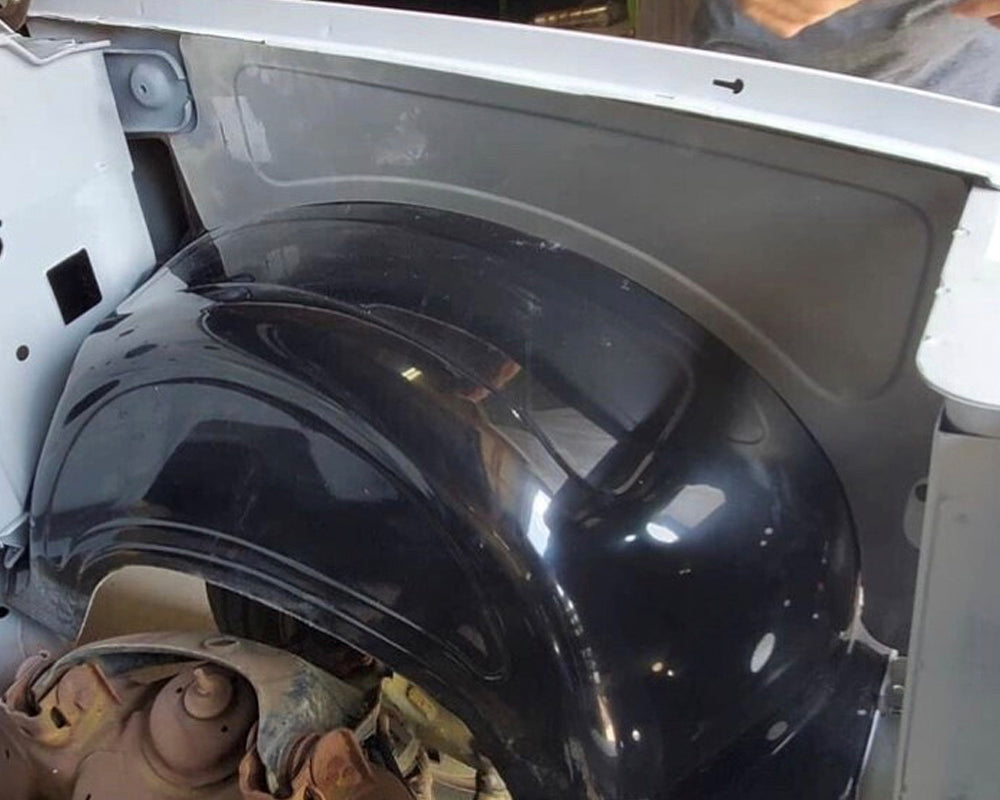

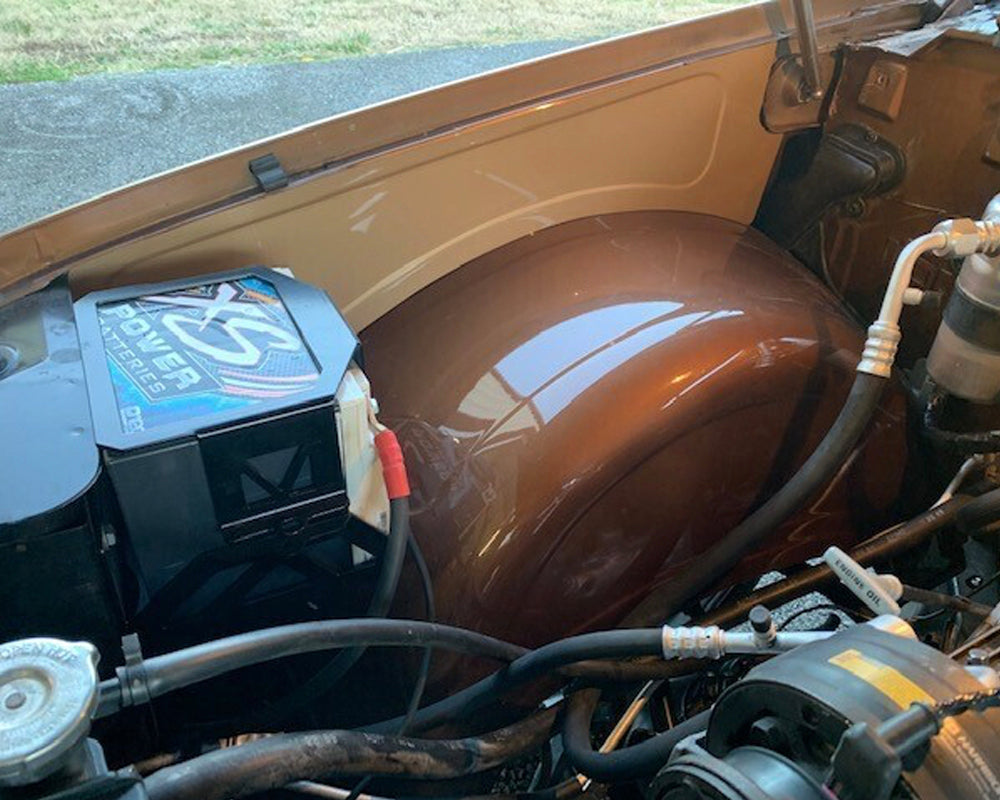

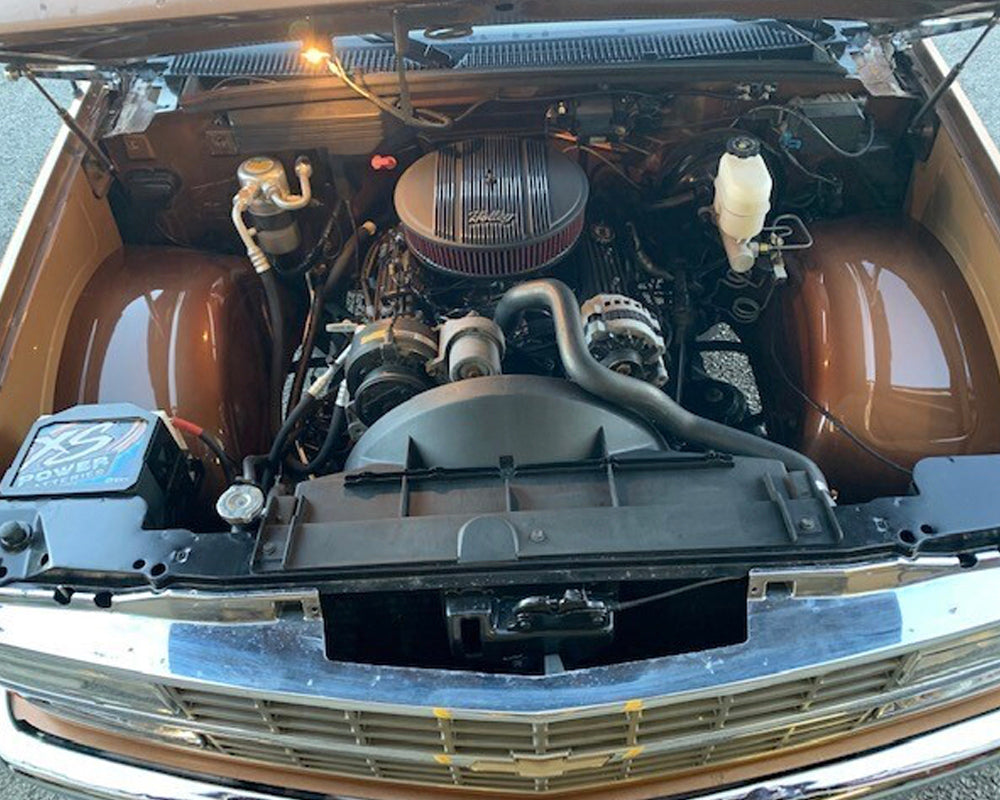

1988-98 FAUX Metal Mild Tubz built for the static drop or mild bagged truck! These Tubz are approximately 2-3 inches taller in the peak and 2 inches wider towards the outside edge of the fender and 2-3 wider towards the engine. These tubz have been designed to clear the factory ac drier/ factory wiring harness and on the 88-92 they will clear the master cylinder and brake lines (will need to relocate the abs box to under the master cylinder). The battery box will need raised to clear the Tubz (we are currently working on a solution for that) and working on designing some side trim panels also.
The Faux Metal Tubz will include: Trim Patterns, bolt kit, and the holes will be marked in the same locations that I used on my truck (they could be slightly different from year to year so I will not drill them)
The Mild Tubz is not designed around a certain tire size/drop combo since this is almost impossible to calculate with all of the factors in the equation: drop of the spindles, width of the control arms, backspacing on wheels, and tire size. Our Tubz is built to the limiting factors found in the engine compartment.
Fits 1988-1998 Chevrolet | GMC C/K1500
